Product Information

Manufacturer

MSI

Series

B650

Variant

B650 GAMING PLUS WIFI

Release Year

Unknown

Manufacturer Color

Unknown

UPC

824142324080

EAN

4711377098052

Part Numbers

B650 GAMING PLUS WIFI 7E26-001R 911-7E26-001 B650GPWIFI B650GamingPlusWiFi

BuildCores ID

wppuefh8x

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B650

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 22110 / 2280 PCIe 4.0 x4 M 2280 / 2260 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 8125BG 2.5 Gb/s

WiFi

Wifi 6E Bluetooth 5.3

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

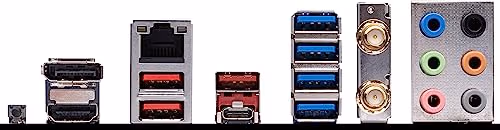

Back Panel Ports

DisplayPort 2.5G LAN USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C)

See an issue?Report an issue on OpenDB

Motherboard

MSI B650 GAMING PLUS WIFI DDR5 ATX

Name: MSI B650 GAMING PLUS WIFI DDR5 ATX
Brand: MSI
SKU: wppuefh8x

Best Price

$99.89

via

	FREE s/h	$99.89
Loading... Loading
	—	$171.21
Loading... Loading
	FREE s/h	$175.94
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$99.89 via Newegg Loading... Loading
	—	—	In stock	$171.21 via Amazon Loading... Loading
	FREE s/h	—	In stock	$175.94 via Walmart Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	FREE s/h	—	In stock	$99.89 via Newegg Loading... Loading
	—	—	In stock	$171.21 via Amazon Loading... Loading
	FREE s/h	—	In stock	$175.94 via Walmart Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links
