Product Information
Manufacturer
ASUS
Series
ROG Strix
Variant
Z370-I
Release Year
2018
Manufacturer Color
Unknown
UPC
889349854662
EAN
0889349854662
Part Numbers
Strix Z370-I Gaming
BuildCores ID
xmtnghp5q
General Specifications
Socket
LGA 1151
Form Factor
Mini-ITX
Chipset
Intel Z370
Max Memory
32 GB
Memory Type
DDR4
Memory Slots
2
Colors
None
PCIe Slots
1 x PCIe 3.0 x16
M.2 Slots
M 2280 PCIe 3.0 x4 M 2280 PCIe 3.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel 1 Gb/s
WiFi
Unknown
USB 2.0
6
USB 3.2 Gen 1
4
USB 3.2 Gen 2
1
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
No
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
No
Audio Chipset
SupremeFX S1220A
Audio Channels
7.1

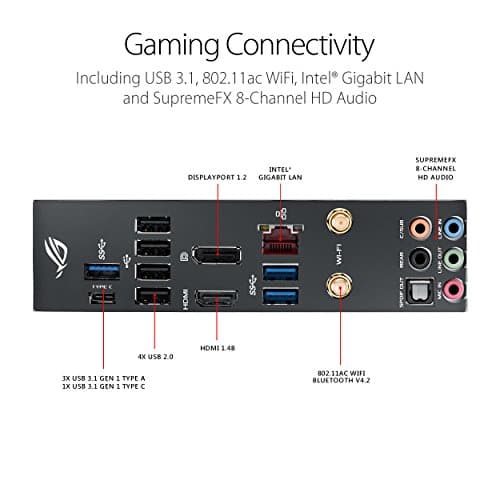

Back Panel Ports
USB 3.0 Type-A USB 3.0 Type-C USB 2.0 DisplayPort HDMI Intel Gigabit Ethernet 2x2 802.11ac Wi-Fi
Motherboard

Asus ROG Strix Z370-I Gaming

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

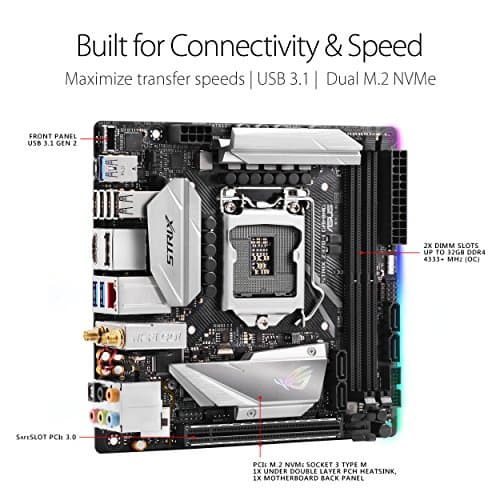

Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with Dual M.2, USB 3.1, 802.11ac Wi-Fi, Gigabit LAN and Intel Optane Memory compatibility

Innovative M.2 Double-Decker Heatsink shrouds the main M.2 slot and provides shared cooling for both the M.2 and PCH;Anti-surge LANGuard. Operating System: Windows 10 64-bit

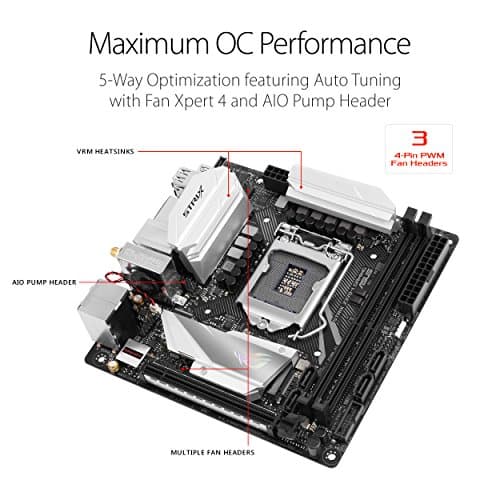

5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling

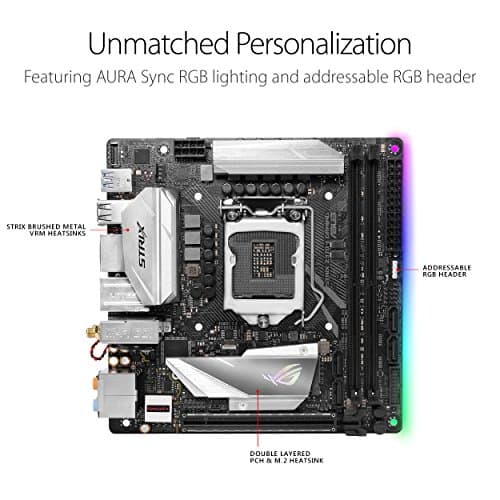

Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting and addressable RGB header

Patent-pending Safe Slot features an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs

Additional Features

Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with Dual M.2, USB 3.1, 802.11ac Wi-Fi, Gigabit LAN and Intel Optane Memory compatibility

Innovative M.2 Double-Decker Heatsink shrouds the main M.2 slot and provides shared cooling for both the M.2 and PCH;Anti-surge LANGuard. Operating System: Windows 10 64-bit

5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling

Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting and addressable RGB header

Patent-pending Safe Slot features an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
