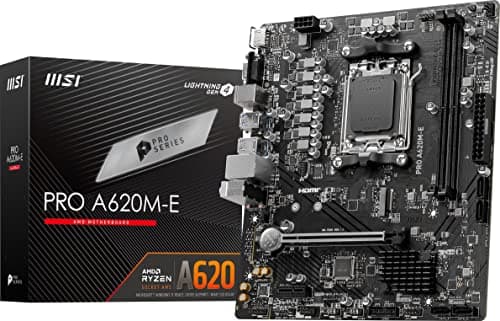

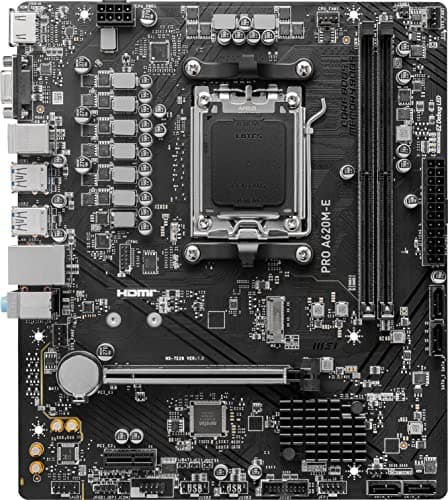

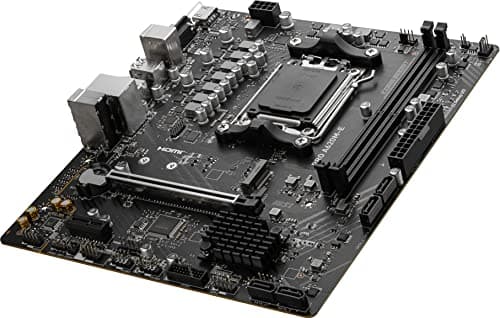

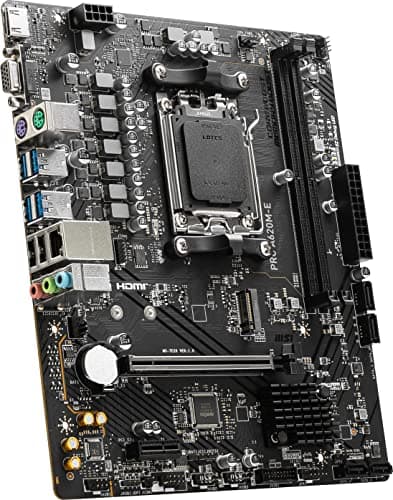

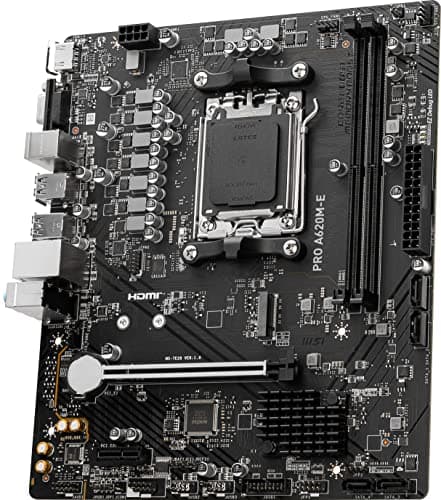

MSI PRO A620M-E AM5 DDR5 Micro ATX image

MSI PRO A620M-E AM5 DDR5 Micro ATX main image

Product Information

Manufacturer

MSI

Series

A620

Variant

PRO M-E

Release Year

Unknown

Manufacturer Color

Unknown

UPC

824142322406

EAN

0824142322406

Part Numbers

PRO A620M-E 7E28-001R 911-7E28-001

BuildCores ID

xzbfof58q

General Specifications

Socket

AM5

Form Factor

Micro ATX

Chipset

AMD A620

Max Memory

128 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK GREY

PCIe Slots

1 x PCIe 4.0 x16 1 x PCIe 3.0 x1

M.2 Slots

M 2260-2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek RTL8111H 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek ALC897

Audio Channels

7.1

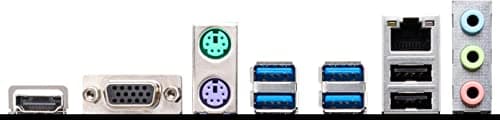

Back Panel Ports

1 x HDMI 2.1 port 1 x VGA port 1 x Keyboard port 1 x Mouse port 4 x USB 3.2 Gen 1 5Gbps Type-A ports (2 from CPU 2 from Chipset) 2 x USB 2.0 Type-A ports 1 x 1Gbps LAN (RJ45) port 3 x Audio jacks

See an issue?Report an issue on OpenDB
