LoadingProduct Information
Manufacturer
ASUS
Series
B850
Variant
ROG STRIX A GAMING WiFi 7 NEO
Release Year
2026
Manufacturer Color
White
UPC
None
EAN
None
Part Numbers
rog-strix-b850-a-gaming-wifi7-neo
BuildCores ID
xzuu6sqp7
General Specifications
Socket
AM5
Form Factor
ATX
Chipset
AMD B850
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
WHITE
GREY
RGB
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16
M.2 Slots
M 2242/2260/2280 PCIe 5.0 x4
M 2280 PCIe 4.0 x4
SATA 6Gb/s
2
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
1 x Realtek 5GB Ethernet 5 Gb/s
WiFi
Wi-Fi 7 Bluetooth 5.4
USB 2.0
3
USB 3.2 Gen 1
2
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
1
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
1
Thunderbolt Headers
1
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC4080
Audio Channels
7.1
Back Panel Ports
4 x USB 10Gbps ports (2 x Type-A + 2 x USB Type-C)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Motherboard
3D

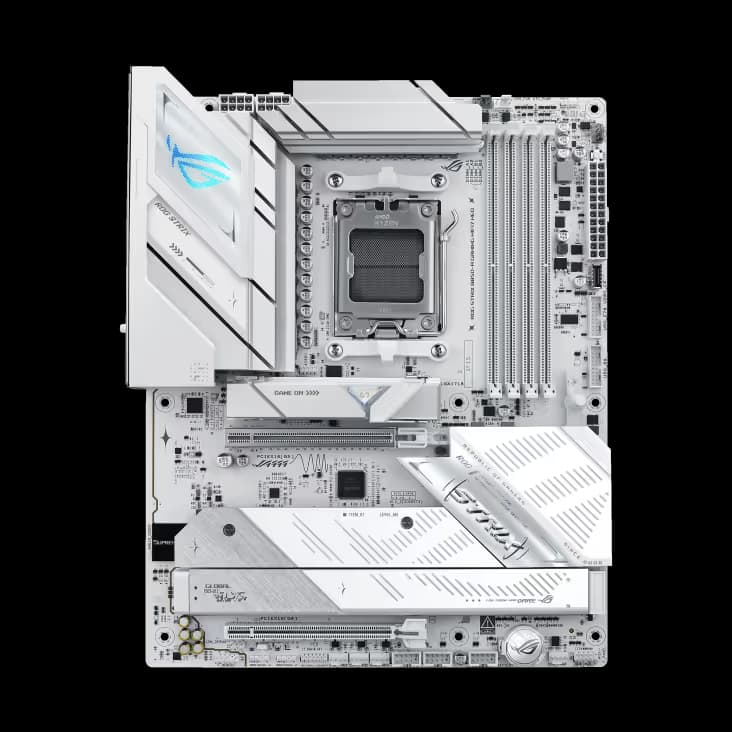

ASUS ROG STRIX B850-A GAMING WIFI7 NEO
