General Specifications

Socket

AM4

Form Factor

Micro ATX

Chipset

AMD B550

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

GREY BLACK

Lighting

None

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 1 Gb/s

WiFi

Wifi 6 Bluetooth 5.2

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

Unknown

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

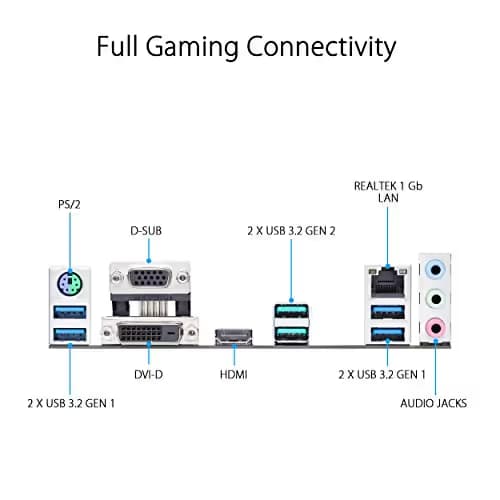

Back Panel Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Product Information

Manufacturer

ASUS

Series

PRIME

Variant

B550M-A WIFI II

Release Year

2022

Manufacturer Color

Black/Silver

UPC

195553309752 195553309745

EAN

0195553309752 4711081309741 0195553309745

Part Numbers

PRIME B550M-A WIFI II 90MB19X0-M0EAY0

BuildCores ID

y7krgnyxt

See an issue?Report an issue on OpenDB

Motherboard

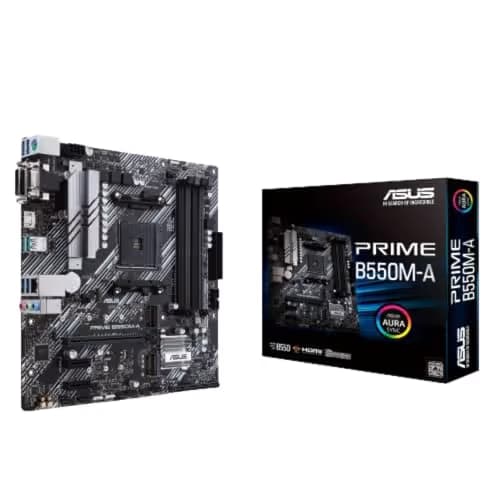

ASUS PRIME B550M-A WIFI II

Name: ASUS PRIME B550M-A WIFI II
Brand: ASUS
SKU: y7krgnyxt

SocketAM4

Form FactorMicro ATX

ChipsetAMD B550

Best Price

$89.99

via

	—	$89.99
Loading... Loading
	—	$89.99
Loading... Loading
	FREE s/h	$89.99
Loading... Loading
	FREE s/h	$89.99
Loading... Loading
	FREE s/h	$119.99
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$89.99 via Amazon Loading... Loading
	—	—	In stock	$89.99 via Walmart Loading... Loading
	FREE s/h	—	In stock	$89.99 via Newegg Loading... Loading
	FREE s/h	—	In stock	$89.99 via B&H Photo Loading... Loading
	FREE s/h	—	In stock	$119.99 via Best Buy Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$89.99 via Amazon Loading... Loading
	—	—	In stock	$89.99 via Walmart Loading... Loading
	FREE s/h	—	In stock	$89.99 via Newegg Loading... Loading
	FREE s/h	—	In stock	$89.99 via B&H Photo Loading... Loading
	FREE s/h	—	In stock	$119.99 via Best Buy Loading... Loading

* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue

Price History

Loading price history...

* Amazon pricing is not included in price history graphs.

Compare this in 3D

Compare with 5000+ 3D products in our database.

Compare

General Specifications

Socket

AM4

Form Factor

Micro ATX

Chipset

AMD B550

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

GREY BLACK

Lighting

None

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 1 Gb/s

WiFi

Wifi 6 Bluetooth 5.2

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

Unknown

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

Back Panel Ports

Product Information

Manufacturer

ASUS

Series

PRIME

Variant

B550M-A WIFI II

Release Year

2022

Manufacturer Color

Black/Silver

UPC

195553309752 195553309745

EAN

0195553309752 4711081309741 0195553309745

Part Numbers

PRIME B550M-A WIFI II 90MB19X0-M0EAY0

BuildCores ID

y7krgnyxt

See an issue?Report an issue on OpenDB
