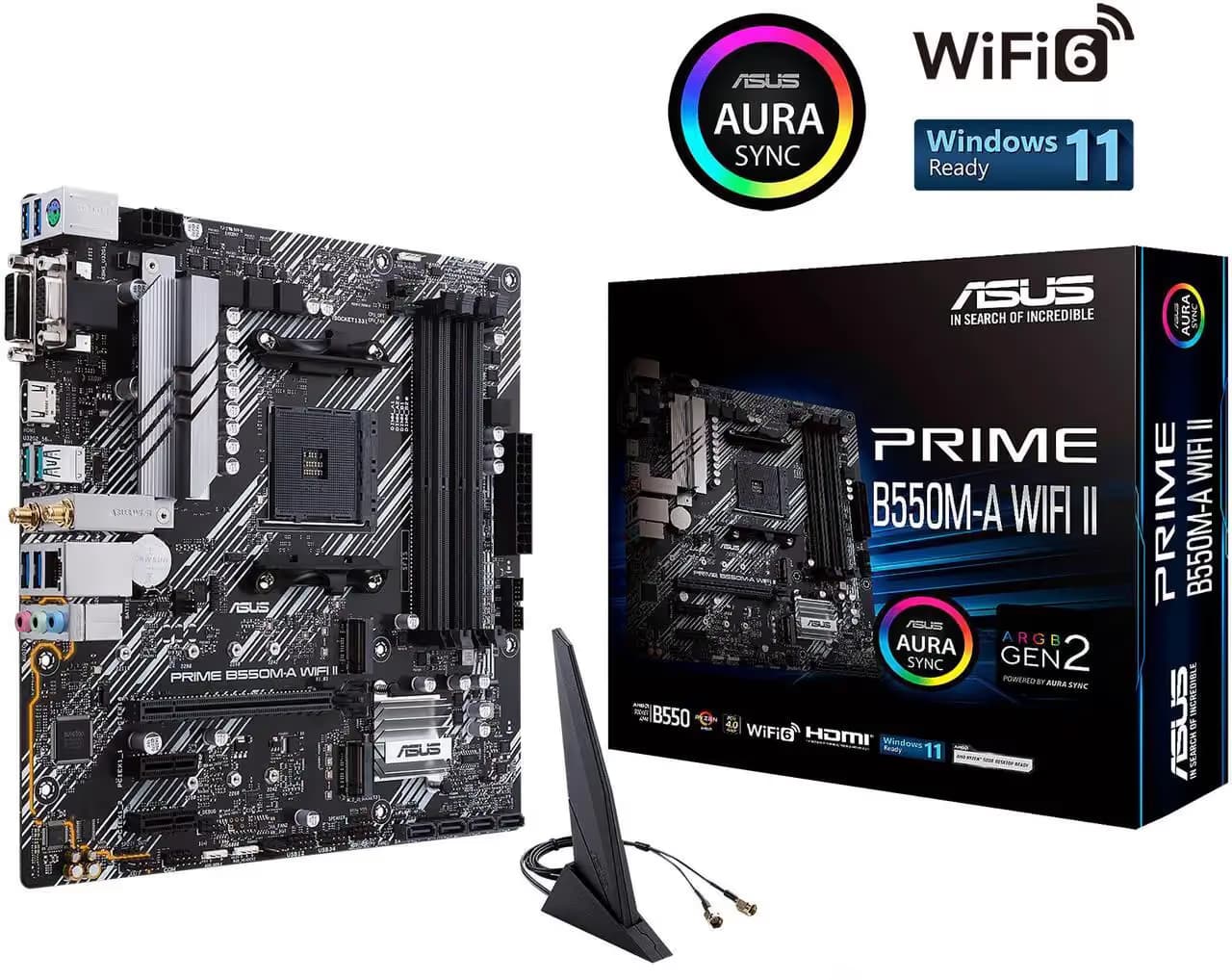

ASUS PRIME B550M-A WIFI II AM4 DDR4 ATX image

ASUS PRIME B550M-A WIFI II AM4 DDR4 ATX main image

General Specifications

Socket

AM4

Form Factor

Micro ATX

Chipset

AMD B550

Weight

Unknown

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

GREY BLACK

Lighting

RGB ARGB

PCIe Slots

1 x PCIe 4.0 x16 2 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280/22110 PCIe 4.0 x4 & SATA M 2242/2260/2280 PCIe 3.0 x4 & SATA

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 1 Gb/s

WiFi

Wifi 6

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek

Audio Channels

7.1

Back Panel Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x D-Sub port 1 x DVI-D port 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Display Outputs

Unknown

Product Information

Manufacturer

ASUS

Series

PRIME

Variant

B550M-A WIFI II

Release Year

2021

Manufacturer Color

Black

UPC

195553309752 195553309745

EAN

0195553309752 4711081309741 0195553309745

Part Numbers

PRIME B550M-A WIFI II 90MB19X0-M0EAY0

BuildCores ID

y7krgnyxt
