M 25110/22110/2580/2280 PCIe 5.0 x4
M 22110/2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
2.5 Gb/s
WiFi
Wifi 6E
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
0
CPU Fan Headers
1
Case Fan Headers
3
Pump Headers
2
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
1
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
0
Thunderbolt Headers
0
COM Port Headers
0
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1

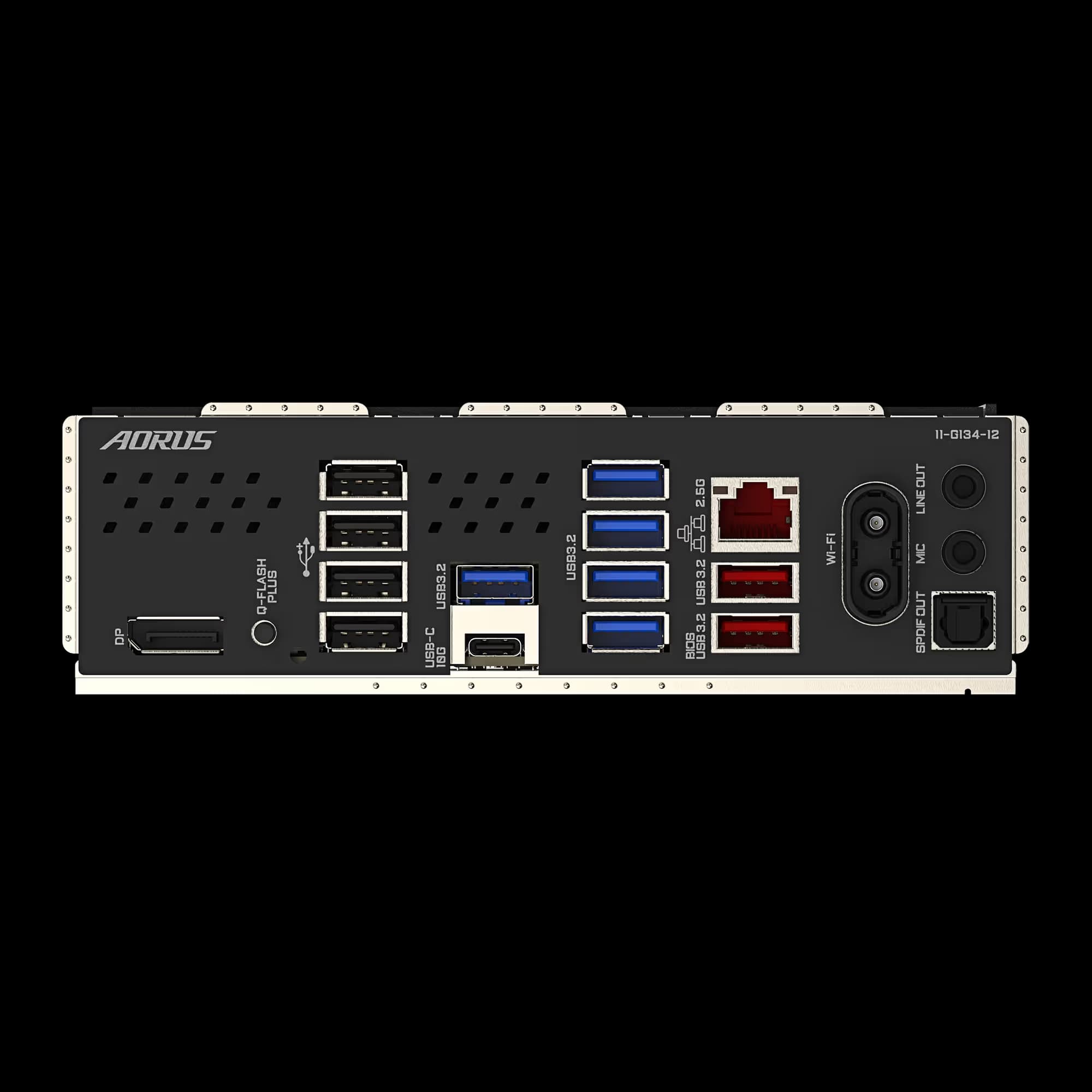

Back Panel Ports
1 x DisplayPort
1 x Q-Flash Plus button
4 x USB 2.0/1.1
5 x USB 3.2 Gen 1
2 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2 Type-C
1 x 2.5 Gb/s RJ-45 LAN
2 x Antenna connectors (2T2R)
2 x Audio jacks
1 x Optical S/PDIF Out
