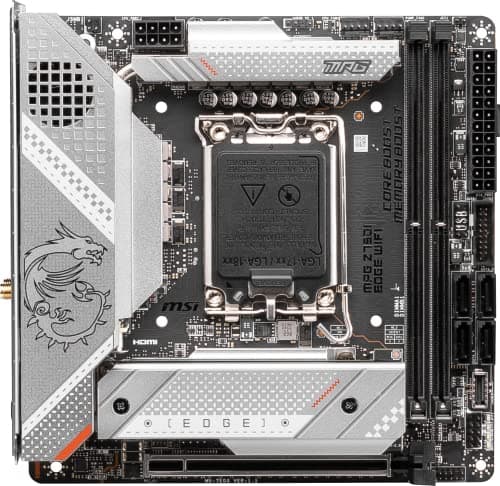

MSI Z790I MPG EDGE WIFI DDR5 Mini ITX image

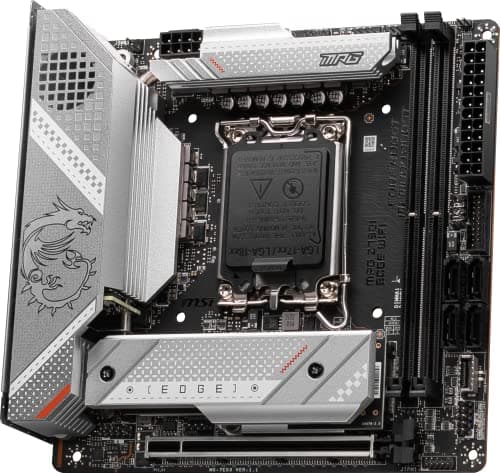

MSI Z790I MPG EDGE WIFI DDR5 Mini ITX image

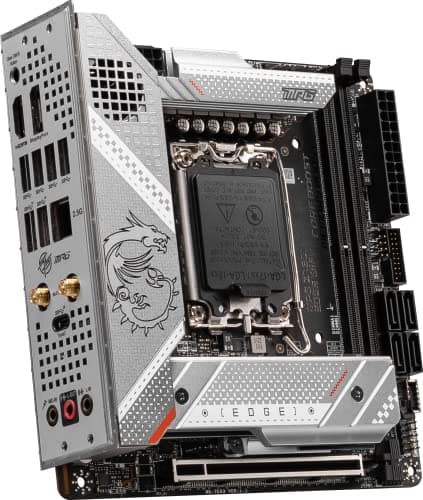

MSI Z790I MPG EDGE WIFI DDR5 Mini ITX image

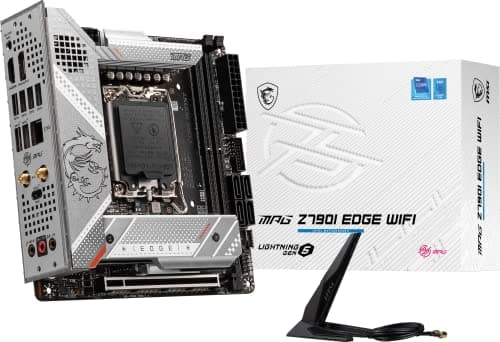

MSI Z790I MPG EDGE WIFI DDR5 Mini ITX image

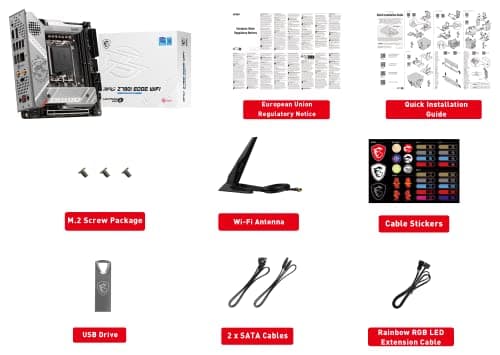

MSI Z790I MPG EDGE WIFI DDR5 Mini ITX image

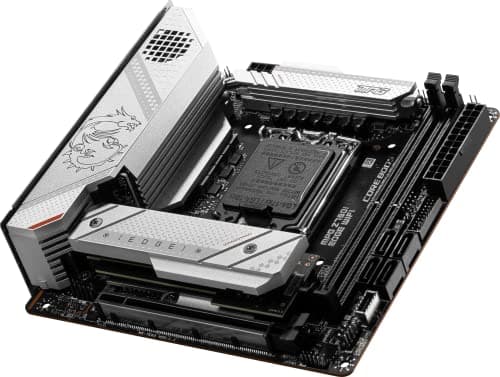

MSI Z790I MPG EDGE WIFI DDR5 Mini ITX image
MSI Z790I MPG EDGE WIFI DDR5 Mini ITX image
MSI Z790I MPG EDGE WIFI DDR5 Mini ITX main image
General Specifications
Socket
LGA 1700
Form Factor
Mini-ITX
Chipset
Intel Z790
Weight
Unknown
Max Memory
128 GB
Memory Type
DDR5
Memory Slots
2
Colors
GREY BLACK
Lighting
ARGB
PCIe Slots
1 x PCIe 5.0 x16
M.2 Slots
M 2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel 2.5 Gb/s
WiFi
Wifi 6E
USB 2.0
1
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
1
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
1
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin'
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC4080
Audio Channels
7.1

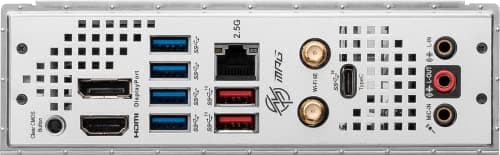

Back Panel Ports
1x Clear CMOS button 1x DisplayPort 1x HDMI™ port 4x USB 3.2 Gen 1 5Gbps Type-A ports 2x USB 3.2 Gen 2 10Gbps Type-A ports 1x LAN (RJ45) port 1x USB 3.2 Gen 2x2 20G Type-C port (From ASM3241) 2x Wi-Fi Antenna connectors 3x OFC audio jacks
Display Outputs
Connector: hdmi Count: 1 Version Label: HDMI 2.1 Video Signal: hdmi Transport: native Graphics Route: integrated Mode Claims: Resolution: 3840 × 2160 px Refresh Rate: 60 Claim: maximum_at_resolution Conditions: Maximum 3840 × 2160 @ 60 Hz; requires processor integrated graphics Connector: displayport Count: 1 Version Label: DisplayPort 1.4 Video Signal: displayport Transport: native Graphics Route: integrated Mode Claims: Resolution: 3840 × 2160 px Refresh Rate: 60 Claim: maximum_at_resolution Conditions: Maximum 3840 × 2160 @ 60 Hz; requires processor integrated graphics
Product Information
Manufacturer
MSI
Series
MPG
Variant
Z790I EDGE WIFI
Release Year
2022
Manufacturer Color
Silver / Black
UPC
824142301456
EAN
0824142301456
Part Numbers
MPG Z790I EDGE WIFI 7E03-001R Z790IEDGE Z790I EDGE WIFI
BuildCores ID
yqded2ge7
Motherboard

MSI Z790I MPG EDGE WIFI DDR5 Mini ITX
