Product Information

Manufacturer

ASRock

Series

PG Velocita

Release Year

2021

Manufacturer Color

Unknown

UPC

None

EAN

4710483934162

Part Numbers

Z590 PG VELOCITA

BuildCores ID

ys4pxwmsx

General Specifications

Socket

LGA 1200

Form Factor

ATX

Chipset

Intel Z590

Max Memory

128 GB

Memory Type

DDR4

Memory Slots

Colors

None

PCIe Slots

2 x PCIe 4.0 x16 1 x PCIe 4.0 x8 1 x PCIe 3.0 x4 1 x PCIe 3.0 x1

M.2 Slots

M 2260/2280 PCIe 4.0 x4 M 2260/2280 PCIe 3.0 x4 M 2260/2280/22110 PCIe 3.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Killer E3100G 2.5 Gb/s Intel I219-V 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC1220

Audio Channels

7.1

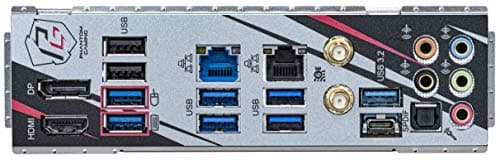

Back Panel Ports

2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) 2 x USB 3.2 Gen1 Type-A Ports (ASMedia ASM1042A) (Supports ESD Protection) 4 x USB 3.2 Gen1 Type-A Ports (Intel® Z590) (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

See an issue?Report an issue on OpenDB

Motherboard

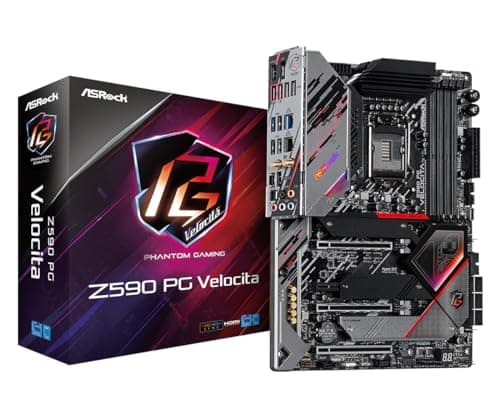

Z590 PG Velocita

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Additional Features

• CPU:INTEL SOCKET1200 FOR INTEL 10TH/11TH GEN CORE

• CHIPSET:INTEL Z590

• MEMORY:4*DIMM MAX 128GB DDR4

• SLOTS:2*PCIE4.0X16;1*PCIE3.0X16;1*PCIE3.0X1

• STORAGE:2*M.2 SLOTS;6*SATA 6GB/S PORTS

Additional Features

• CPU:INTEL SOCKET1200 FOR INTEL 10TH/11TH GEN CORE

• CHIPSET:INTEL Z590

• MEMORY:4*DIMM MAX 128GB DDR4

• SLOTS:2*PCIE4.0X16;1*PCIE3.0X16;1*PCIE3.0X1

• STORAGE:2*M.2 SLOTS;6*SATA 6GB/S PORTS
