ASUS X670E PRIME PRO WIFI-CSM AM5 DDR5 ATX image

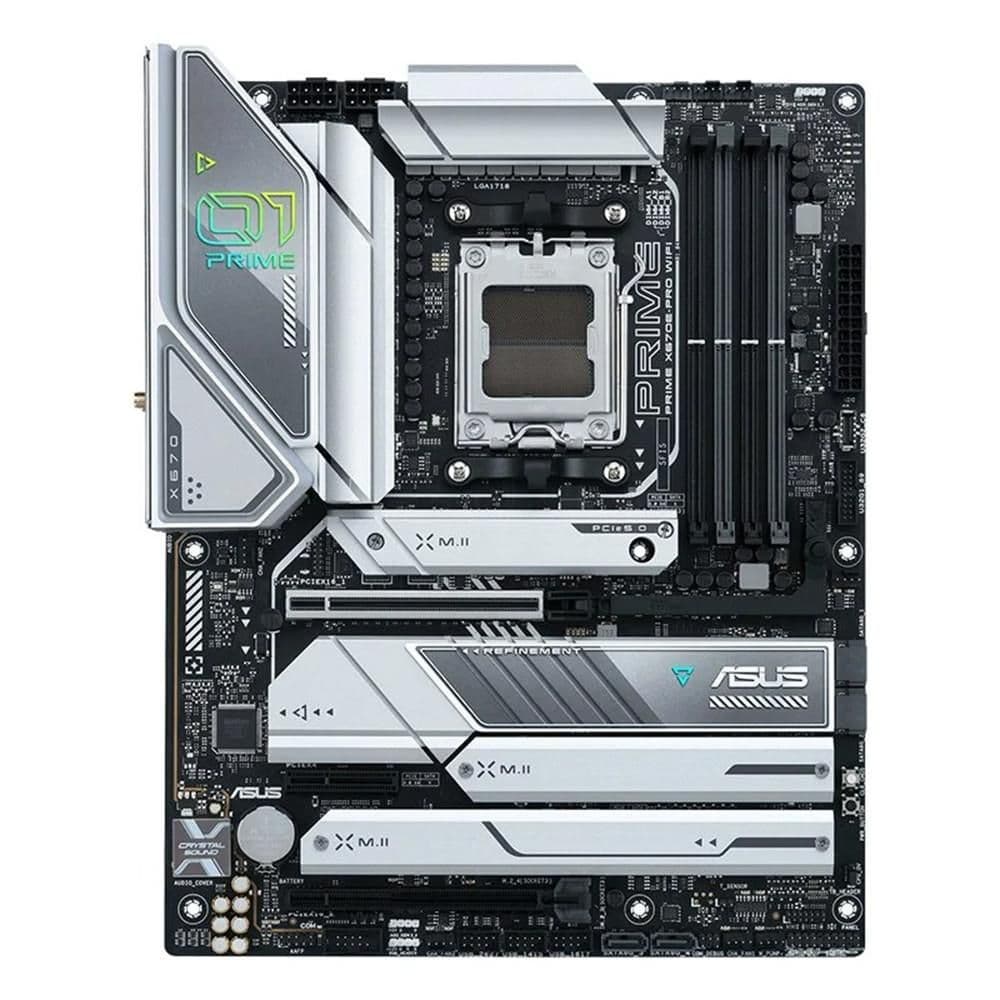

ASUS X670E PRIME PRO WIFI-CSM AM5 DDR5 ATX main image

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X670E

Max Memory

192 GB

Memory Type

DDR5

Memory Slots

Colors

GREY BLACK

Lighting

ARGB RGB

PCIe Slots

1 x PCIe 5.0 x16 2 x PCIe 4.0 x4

M.2 Slots

M 2242/2260/2280 PCIe 5.0 x4 M 2242/2260/2280/22110 PCIe 3.0 x4 & SATA M 2242/2260/2280 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

Wifi 6E

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 8-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek S1220A

Audio Channels

7.1

Back Panel Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 2 ports (3 x Type-A 1 x USB Type-C®) 5 x USB 3.2 Gen 1 ports (4 x Type-A 1 x USB Type-C®) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button

Product Information

Manufacturer

ASUS

Series

PRIME

Variant

X670E-PRO WIFI-CSM

Release Year

2022

Manufacturer Color

White / Silver

UPC

None

EAN

None

Part Numbers

PRIME X670E-PRO WIFI-CSM

BuildCores ID

ywsupv6x8
