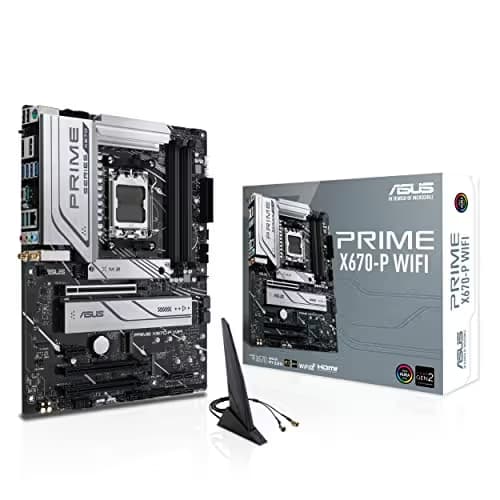

Asus X670 PRIME-P WIFI DDR5 ATX main image

Product Information

Manufacturer

ASUS

Series

X670

Variant

P WIFI AM5 DDR5

Release Year

2025

Manufacturer Color

Unknown

UPC

195553884587

EAN

0195553884587

Part Numbers

PRIME X670-P WIFI 90MB1BV0-M0AAY0 90MB1BV0-M0EAY0

BuildCores ID

yx94rq2a9

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD X670

Max Memory

192 GB

Memory Type

DDR5

Memory Slots

Colors

GREY BLACK

PCIe Slots

3 x PCIe 4.0 x16 1 x PCIe 3.0 x1

M.2 Slots

M 2242/2260/2280 PCIe 5.0 x4 M 2242/2260/2280/22110 PCIe 4.0 x4 M 2242/2260/2280 PCIe 4.0 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Realtek 2.5 Gb/s

WiFi

2x2 Wi-Fi 6 Bluetooth v5.2

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Unknown

Thunderbolt Headers

COM Port Headers

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek

Audio Channels

7.1

Back Panel Ports

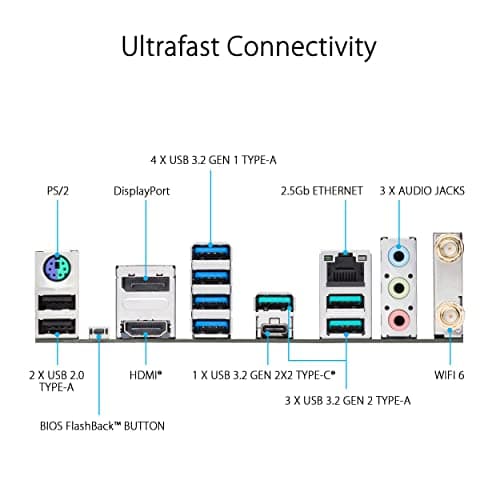

1 x 2.5 Gb/s Ports (Realtek) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 3 x USB 3.2 Gen 2 ports (3 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 3 x Audio jacks 1x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port
