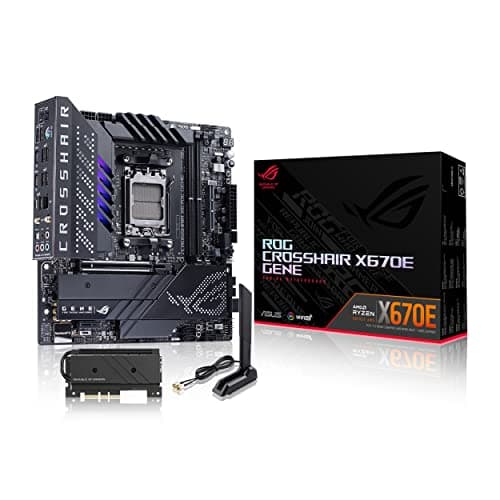

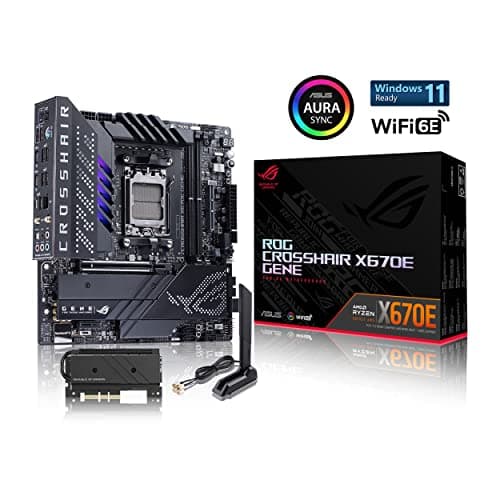

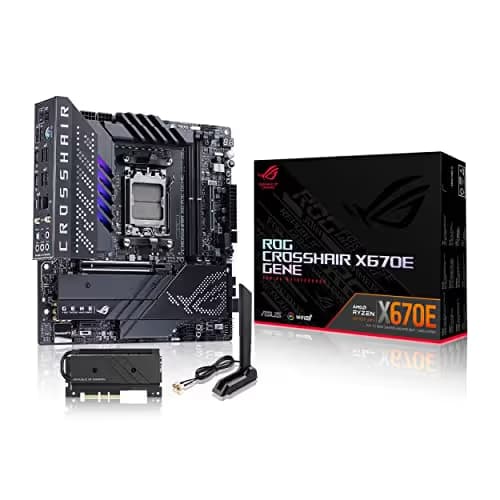

ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard main image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard image
Product Information
Manufacturer
ASUS
Series
ROG
Variant
CROSSHAIR X670E GENE
Release Year
2022
Manufacturer Color
Unknown
UPC
195553894531
EAN
0195553894531
Part Numbers
ROG CROSSHAIR X670E GENE 90MB1B80-M0AAY0
BuildCores ID
yzce8a0cj
General Specifications
Socket
AM5
Form Factor
Micro ATX
Chipset
AMD X670E
Max Memory
64 GB
Memory Type
DDR5
Memory Slots
2
Colors
None
PCIe Slots
1 x PCIe 5.0 x16 1 x PCIe 4.0 x1
M.2 Slots
M 2242 PCIe 5.0 x4 M 2260 PCIe 5.0 x4 M 2280 PCIe 5.0 x4 M 22110 PCIe 5.0 x4 M 22110 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Intel I226-V 2.5 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
5
USB 3.2 Gen 2x2
1
USB 4.0
2
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes

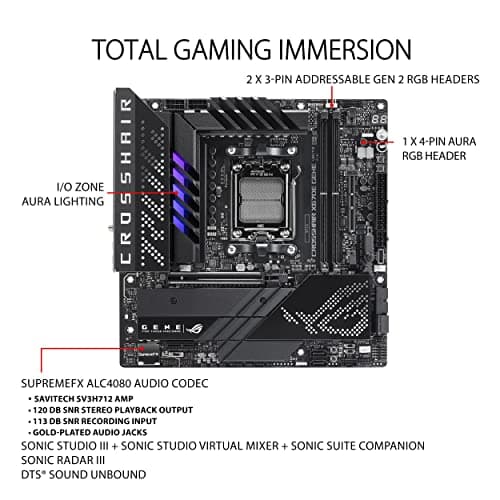

Audio Chipset
Realtek ALC4080
Audio Channels
7.1

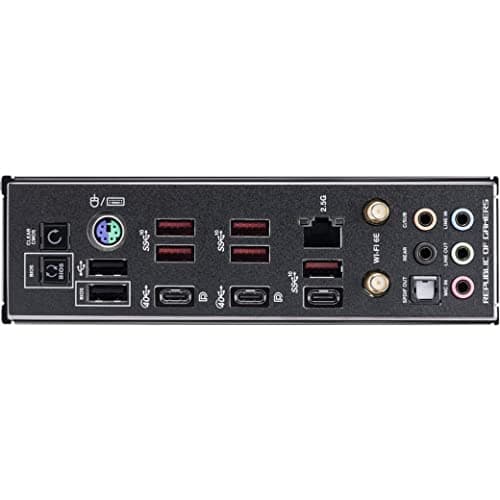

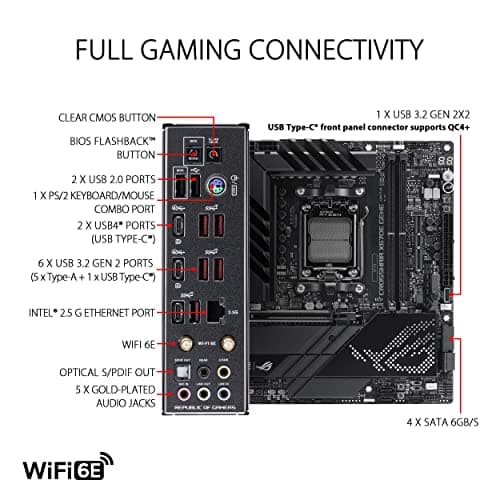

Back Panel Ports
2 x USB4 ports 6 x USB 3.2 Gen 2 ports 2 x USB 2.0 ports 1 x Wi-Fi Module 1 x Intel I226-V 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button 1 x PS/2 Keyboard/Mouse combo port
Motherboard

ASUS ROG CROSSHAIR X670E GENE Micro ATX Motherboard

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

AMD Socket AM5(LGA 1718) for AMD Ryzen 7000 Series Desktop Processors

Intelligent Control: ASUS-exclusive tools including AI Cooling II, AI Networking, Two-Way AI Noise-Cancelation for easy configuration

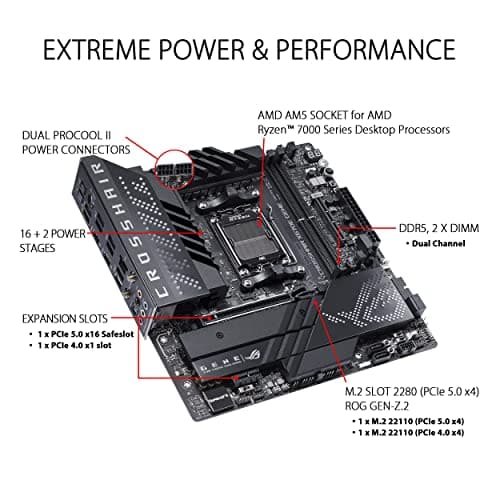

Robust Power Solution: 16 + 2 teamed power stages rated for 110A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover, ROG GEN-Z.2, high-conductivity thermal pad, triple M.2 heatsinks and single M.2 with embedded backplate

High-Performance Networking: Onboard Wi-Fi 6E, Intel 2.5 Gb Ethernet, and ASUS LANGaurd

Additional Features

AMD Socket AM5(LGA 1718) for AMD Ryzen 7000 Series Desktop Processors

Intelligent Control: ASUS-exclusive tools including AI Cooling II, AI Networking, Two-Way AI Noise-Cancelation for easy configuration

Robust Power Solution: 16 + 2 teamed power stages rated for 110A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

Optimized Thermal Design: Large VRM heatsinks plus integrated aluminum I/O cover, ROG GEN-Z.2, high-conductivity thermal pad, triple M.2 heatsinks and single M.2 with embedded backplate

High-Performance Networking: Onboard Wi-Fi 6E, Intel 2.5 Gb Ethernet, and ASUS LANGaurd
