General Specifications
Socket
AM5
Form Factor
ATX
Chipset
AMD X870E
Weight
Unknown
Max Memory
256 GB
Memory Type
DDR5
Memory Slots
4
Colors
BLACK GREY
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1
M.2 Slots
M 2280 PCIe 5.0 x4 M 2242/2260/2280/22110 PCIe 5.0 x4 M 2280 PCIe 4.0 x4 M 2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 2.5 Gb/s
WiFi
Wifi 7
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
1
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
4
Pump Headers
1
CPU Optional Fan Headers
1
ARGB 5V Headers
3
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
1
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin 8-pin
ECC Support
Yes
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC1220P
Audio Channels
7.1

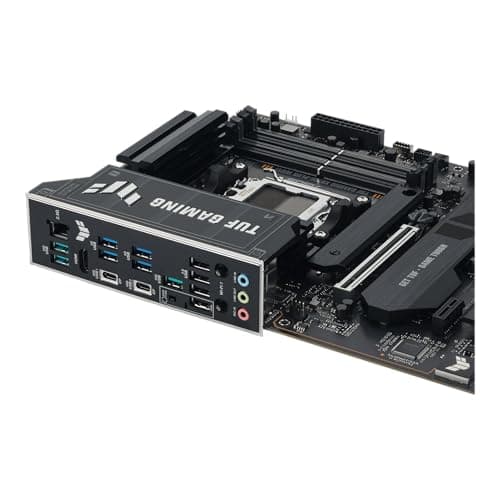

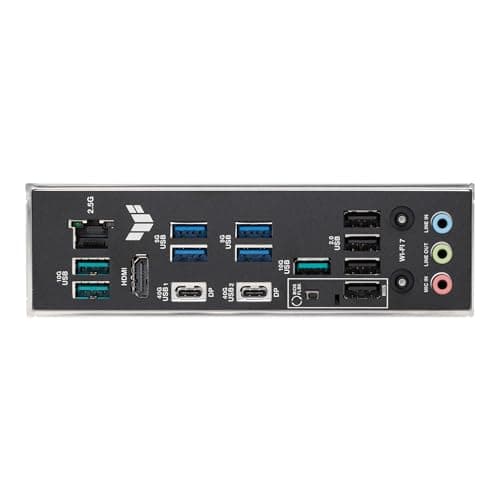

Back Panel Ports
2 x USB4® (40Gbps) ports (2 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button
Display Outputs
Connector: hdmi Count: 1 Version Label: 2.1 Video Signal: hdmi Transport: native Graphics Route: integrated Mode Claims: Resolution: 3840 × 2160 px Refresh Rate: 60 Claim: maximum_at_resolution Conditions: Supports 4K at 60Hz as specified in HDMI 2.1. Graphics specifications depend on the installed processor. Connector: usb_c Count: 2 Version Label: USB4 (40 Gbps) Video Signal: displayport Transport: usb4 Graphics Route: integrated Mode Claims: Resolution: 3840 × 2160 px Refresh Rate: 60 Claim: maximum_at_resolution Conditions: Supports maximum 4K at 60Hz as specified in DisplayPort 1.4a over USB4 Type-C. Graphics capability depends on the installed processor or graphics card.
Product Information
Manufacturer
ASUS
Series
TUF GAMING
Variant
X870E-PLUS
Release Year
2024
Manufacturer Color
Black
UPC
199291100343
EAN
0199291100343 4711636100342
Part Numbers
TUF GAMING X870E-PLUS WIFI7 90MB1M70-M0EAY0
BuildCores ID
zar7kac2z
Motherboard

Asus X870E-PLUS TUF GAMING WIFI7 AM5 DDR5 ATX

Best Price

$258.81

via
Loading...
Amazon
—

$258.81

Walmart
FREE s/h

$289.99

Newegg
FREE s/h

$289.99

ASUS US
—

$324.99

B&H Photo
FREE s/h

$324.99

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
—
—
In stock

$258.81

via Amazon

Walmart
FREE s/h
—
In stock

$289.99

via Walmart

Newegg
FREE s/h
—
In stock

$289.99

via Newegg

ASUS US
—
—
In stock

$324.99

via ASUS US

B&H Photo
FREE s/h
—
Unknown

$324.99

via B&H Photo

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
—
—
In stock

$258.81

via Amazon

Walmart
FREE s/h
—
In stock

$289.99

via Walmart

Newegg
FREE s/h
—
In stock

$289.99

via Newegg

ASUS US
—
—
In stock

$324.99

via ASUS US

B&H Photo
FREE s/h
—
Unknown

$324.99

via B&H Photo

* BuildCores may receive compensation for affiliate sales through these linksReport a pricing issue
Price History
Loading price history...
* Amazon pricing is not included in price history graphs.
