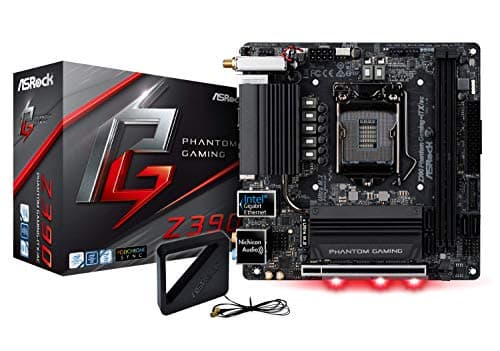

ASRock Z390 Phantom Gaming-ITX/ac Mini ITX LGA1151 Motherboard image

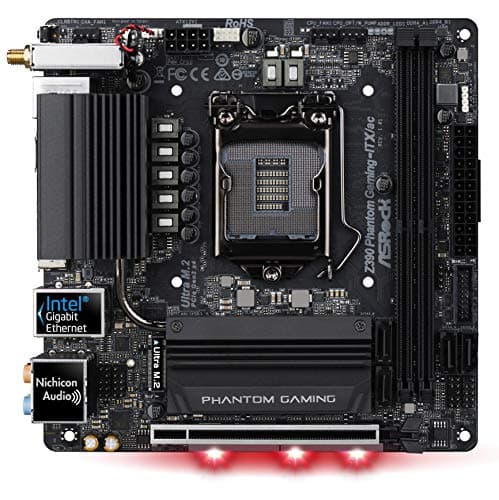

ASRock Z390 Phantom Gaming-ITX/ac Mini ITX LGA1151 Motherboard main image

Product Information

Manufacturer

ASRock

Series

Phantom Gaming

Variant

ITX/ac

Release Year

2019

Manufacturer Color

Unknown

UPC

889349854907

EAN

4717677336832

Part Numbers

Z390 PHANTOM GAMING-ITX/AC

BuildCores ID

zbvr87kjj

General Specifications

Socket

LGA 1151

Form Factor

Mini-ITX

Chipset

Intel Z390

Max Memory

64 GB

Memory Type

DDR4

Memory Slots

Colors

None

PCIe Slots

1 x PCIe 3.0 x16

M.2 Slots

M 2260/2280 SATA3 M 2280 PCIe Gen3 x4

SATA 6Gb/s

SATA 3Gb/s

U.2 Ports

Onboard Ethernet

Intel I219-V 1 Gb/s

WiFi

Unknown

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

USB 4 80Gbps

Unknown

CPU Fan Headers

Unknown

Case Fan Headers

Unknown

Pump Headers

Unknown

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

Unknown

RGB 12V Headers

Unknown

Power Button Header

Unknown

Reset Button Header

Unknown

Power LED Header

Unknown

HDD LED Header

Unknown

Temperature Sensor Headers

Unknown

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

Unknown

CPU Power

None

ECC Support

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Clear CMOS Button

Audio Chipset

Realtek ALC1220

Audio Channels

7.1

Back Panel Ports

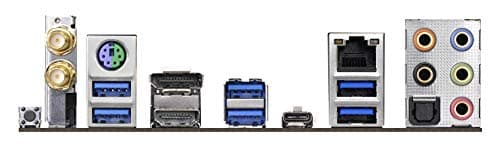

1 x PS/2 keyboard/mouse port 1 x HDMI 1 x DisplayPort 1.2 1 x Intel Thunderbolt 3 (Compatible with USB 3.1 Gen2 and USB-C Display) 1 x Optical SPDIF Out Port 4 x USB 3.1 Gen2 Type-A Ports (10Gb/s) (Supports ESD Protection) 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) 1 x Clear CMOS Button HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

See an issue?Report an issue on OpenDB

Motherboard

ASRock Z390 Phantom Gaming-ITX/ac Mini ITX LGA1151 Motherboard

	—	N/A
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	Out of stock	N/A via Amazon Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading chart...

* Amazon pricing is not included in price history graphs.

Additional Features

• LGA1151 Supports 9th and 8th Generation Intel Core Processors

• Chipset: Intel Z390.Supports IEEE 802.11a/b/g/n/ac

• Memory: 2x DDR4 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB.Supports Bluetooth 5.0 + High speed class II

• Slots: 1x PCI-Express 3.0 x16 Slot

• SATA: 4x SATA3 Ports Support RAID 0, 1, 5, 10

Additional Features

• LGA1151 Supports 9th and 8th Generation Intel Core Processors

• Chipset: Intel Z390.Supports IEEE 802.11a/b/g/n/ac

• Memory: 2x DDR4 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB.Supports Bluetooth 5.0 + High speed class II

• Slots: 1x PCI-Express 3.0 x16 Slot

• SATA: 4x SATA3 Ports Support RAID 0, 1, 5, 10
