Product Information
Manufacturer
ASUS
Series
H470
Variant
Unknown
Release Year
Unknown
Manufacturer Color
Unknown
UPC
None
EAN
None
Part Numbers
PRIME H470-PLUS
90MB1360-M0EAY0
BuildCores ID
zgzaptvy4
General Specifications
Socket
LGA 1200
Form Factor
ATX
Chipset
Intel H470
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
BLACK
WHITE
PCIe Slots
2 x PCIe 4.0 x16
4 x PCIe 4.0 x1
M.2 Slots
M 2242-2260 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
M 2242-2260 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
E 2280 PCIe 4.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek L8200A 1 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
No
Clear CMOS Button
No
Audio Chipset
Realtek
Audio Channels
7.1
Back Panel Ports
1 x 1 Gb/s (Realtek L8200A)
Motherboard

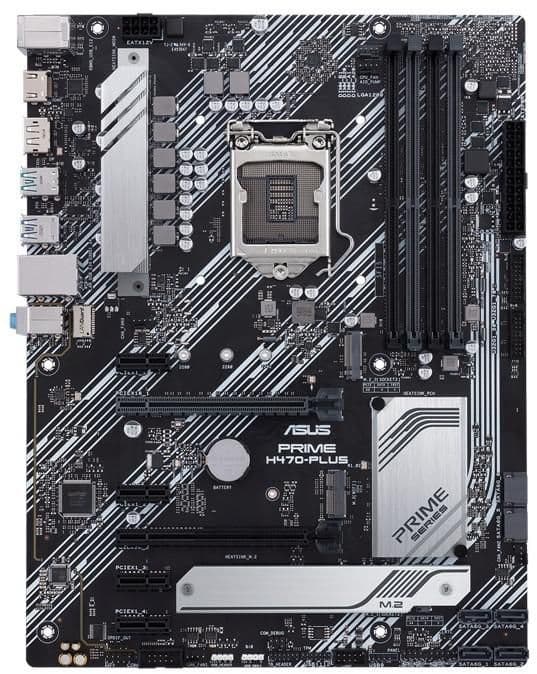

Asus H470 PRIME-PLUS DDR4 ATX
