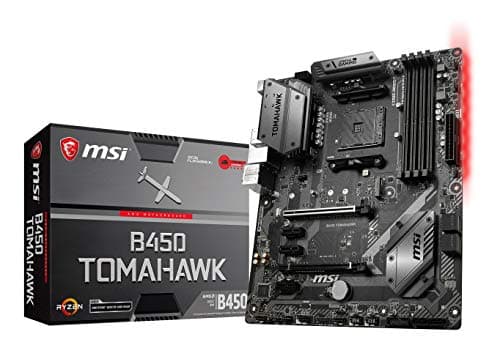

MSI ARSENAL GAMING B450 TOMAHAWK AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard image
MSI ARSENAL GAMING B450 TOMAHAWK AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard image
MSI ARSENAL GAMING B450 TOMAHAWK AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard image
MSI ARSENAL GAMING B450 TOMAHAWK AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard image
MSI ARSENAL GAMING B450 TOMAHAWK AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard main image
MSI ARSENAL GAMING B450 TOMAHAWK AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard image
MSI ARSENAL GAMING B450 TOMAHAWK AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard image
MSI ARSENAL GAMING B450 TOMAHAWK AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard image
MSI ARSENAL GAMING B450 TOMAHAWK AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard image
Product Information
Manufacturer
MSI
Series
ARSENAL GAMING
Release Year
2018
Manufacturer Color
Unknown
UPC
824142167946
EAN
0824142167946
Part Numbers
B450 TOMAHAWK N82E16813144189
BuildCores ID
zi1uyh6sf

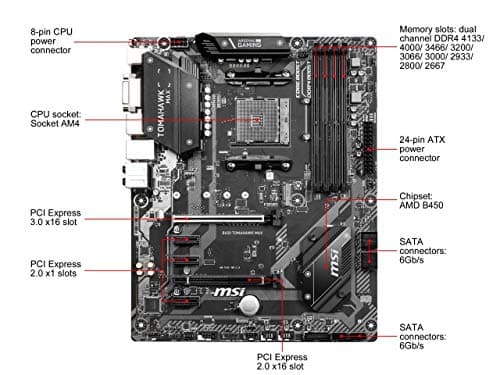

General Specifications
Socket
AM4
Form Factor
ATX
Chipset
AMD B450
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
1 x PCIe 3.0 x16 1 x PCIe 2.0 x4 3 x PCIe 2.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIe 3.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 8111H 1 Gb/s
WiFi
Unknown
USB 2.0
4
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC892
Audio Channels
7.1

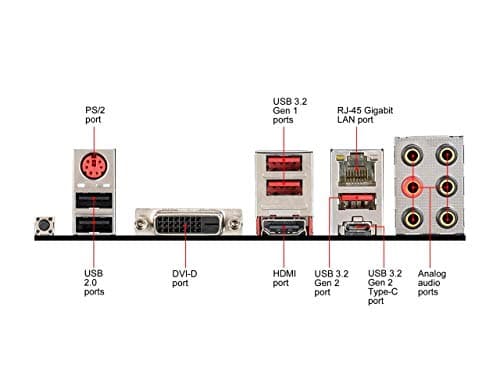

Back Panel Ports
Flash BIOS Button PS/2 Combo Port USB 3.1 Gen1 LAN Port HD Audio Connectors USB 2.0 Port DVI-D Port HDMI Port USB 3.1 Gen2 Type A+C
Motherboard

MSI ARSENAL GAMING B450 TOMAHAWK AM4 AMD B450 SATA 6Gb/s USB 3.1 HDMI ATX AMD Motherboard

Loading...
Loading
Loading...
Loading
Amazon

N/A

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

MERCHANT

SHIPPING

PROMO

AVAILABILITY

TOTAL

Amazon
Out of stock

N/A

via Amazon

Loading...
Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History
Loading chart...
* Amazon pricing is not included in price history graphs.

Additional Features

Support AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics Processors for Socket AM4

Supports 64gb dual channel ddr4 memory 1866/ 2133/ 2400/ 2667 MHz by jedec, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by a XMP OC mode

Supports 2 way amd crossfire technology

In game weapons: Game boost, gaming hotkey, x boost; Ez debug led: Easiest way to troubleshoot

Gaming certified: 24 hour on and offline game and motherboard testing by esports players.lan chipset:realtek 8111h.maximum shared memory of 2048 MB

Additional Features

Support AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics Processors for Socket AM4

Supports 64gb dual channel ddr4 memory 1866/ 2133/ 2400/ 2667 MHz by jedec, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by a XMP OC mode

Supports 2 way amd crossfire technology

In game weapons: Game boost, gaming hotkey, x boost; Ez debug led: Easiest way to troubleshoot

Gaming certified: 24 hour on and offline game and motherboard testing by esports players.lan chipset:realtek 8111h.maximum shared memory of 2048 MB

Product Information
Manufacturer
MSI
Series
ARSENAL GAMING
Release Year
2018
Manufacturer Color
Unknown
UPC
824142167946
EAN
0824142167946
Part Numbers
B450 TOMAHAWK N82E16813144189
BuildCores ID
zi1uyh6sf
General Specifications
Socket
AM4
Form Factor
ATX
Chipset
AMD B450
Max Memory
128 GB
Memory Type
DDR4
Memory Slots
4
Colors
None
PCIe Slots
1 x PCIe 3.0 x16 1 x PCIe 2.0 x4 3 x PCIe 2.0 x1
M.2 Slots
M 2242/2260/2280/22110 PCIe 3.0 x4
SATA 6Gb/s
6
SATA 3Gb/s
0
U.2 Ports
0
Onboard Ethernet
Realtek 8111H 1 Gb/s
WiFi
Unknown
USB 2.0
4
USB 3.2 Gen 1
2
USB 3.2 Gen 2
0
USB 3.2 Gen 2x2
0
USB 4.0
0
USB 4 80Gbps
Unknown
CPU Fan Headers
Unknown
Case Fan Headers
Unknown
Pump Headers
Unknown
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Unknown
Reset Button Header
Unknown
Power LED Header
Unknown
HDD LED Header
Unknown
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
Unknown
CPU Power
None
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
Yes
Audio Chipset
Realtek ALC892
Audio Channels
7.1
Back Panel Ports
Flash BIOS Button PS/2 Combo Port USB 3.1 Gen1 LAN Port HD Audio Connectors USB 2.0 Port DVI-D Port HDMI Port USB 3.1 Gen2 Type A+C
