General Specifications
Socket
LGA 1700
Form Factor
Micro ATX
Chipset
Intel B760
Max Memory
64 GB
Memory Type
DDR5
Memory Slots
2
Colors
BLACK
Lighting
None
PCIe Slots
1 x PCIe 5.0 x16
1 x PCIe 4.0 x1
M.2 Slots
M 2260/2280 PCIe 4.0 x4
M 2280 PCIe 4.0 x4
SATA 6Gb/s
4
SATA 3Gb/s
Unknown
U.2 Ports
Unknown
Onboard Ethernet
Realtek 10 Gb/s
WiFi
Unknown
USB 2.0
2
USB 3.2 Gen 1
1
USB 3.2 Gen 2
Unknown
USB 3.2 Gen 2x2
Unknown
USB 4.0
Unknown
USB 4 80Gbps
Unknown
CPU Fan Headers
1
Case Fan Headers
1
Pump Headers
1
CPU Optional Fan Headers
Unknown
ARGB 5V Headers
Unknown
RGB 12V Headers
Unknown
Power Button Header
Yes
Reset Button Header
Yes
Power LED Header
Yes
HDD LED Header
Yes
Temperature Sensor Headers
Unknown
Thunderbolt Headers
Unknown
COM Port Headers
Unknown
Main Power
24-pin
CPU Power
8-pin
ECC Support
No
RAID Support
Yes
Back-Connect Connectors
No
BIOS Flashback
Yes
Clear CMOS Button
No
Audio Chipset
Realtek ALC897
Audio Channels
7.1
Back Panel Ports
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x Serial Port: COM1
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
1 x DisplayPort 1.4
2 x USB 3.2 Gen2 Type-A Ports
2 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Product Information
Manufacturer
ASRock
Series
Unknown
Variant
B760M-HDVP
Release Year
2023
Manufacturer Color
Black
UPC
None
EAN
None
Part Numbers
None
BuildCores ID
zqj80p9fa
Motherboard

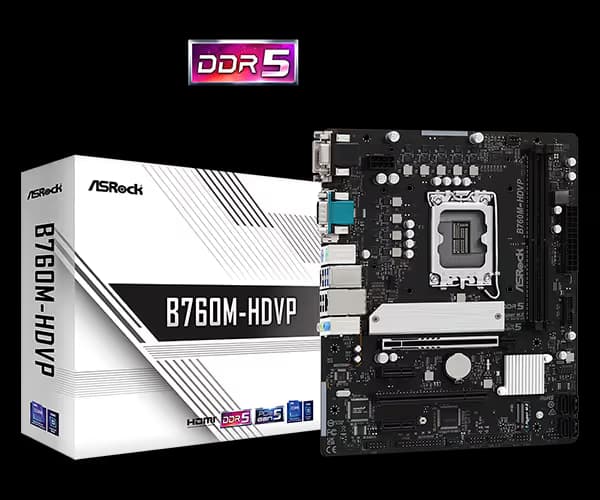

ASRock B760M-HDVP Micro ATX
