General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B850

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK

Lighting

None

PCIe Slots

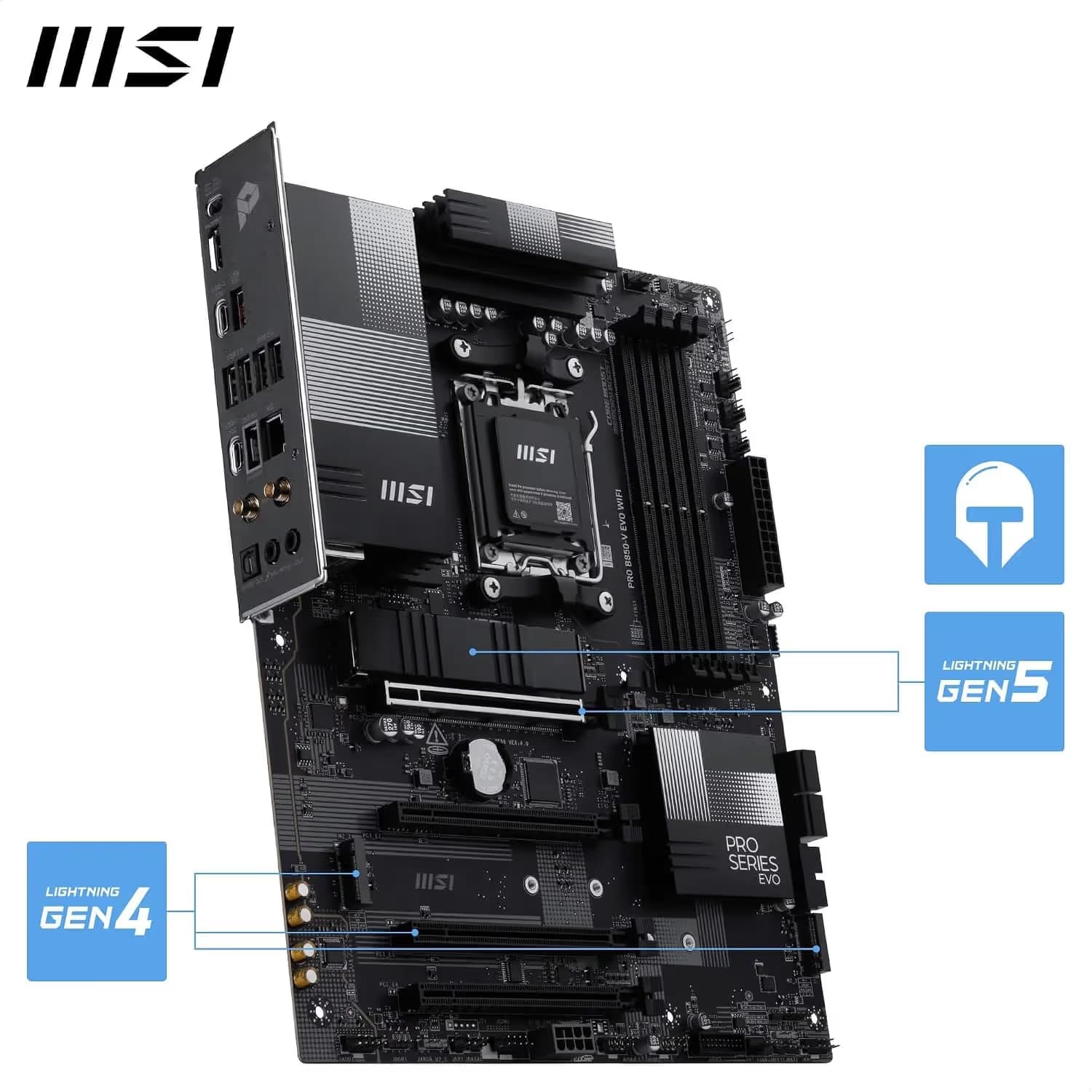

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 2 x PCIe 3.0 x1

M.2 Slots

M 2260/ 2280 PCIe 5.0 x4 M 2280/ 22110 PCIe 4.0 x4 M 2260/ 2280 PCIe 3.0 x4

SATA 6Gb/s

SATA 3Gb/s

Unknown

U.2 Ports

Unknown

Onboard Ethernet

None

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

Unknown

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC897

Audio Channels

7.1

Back Panel Ports

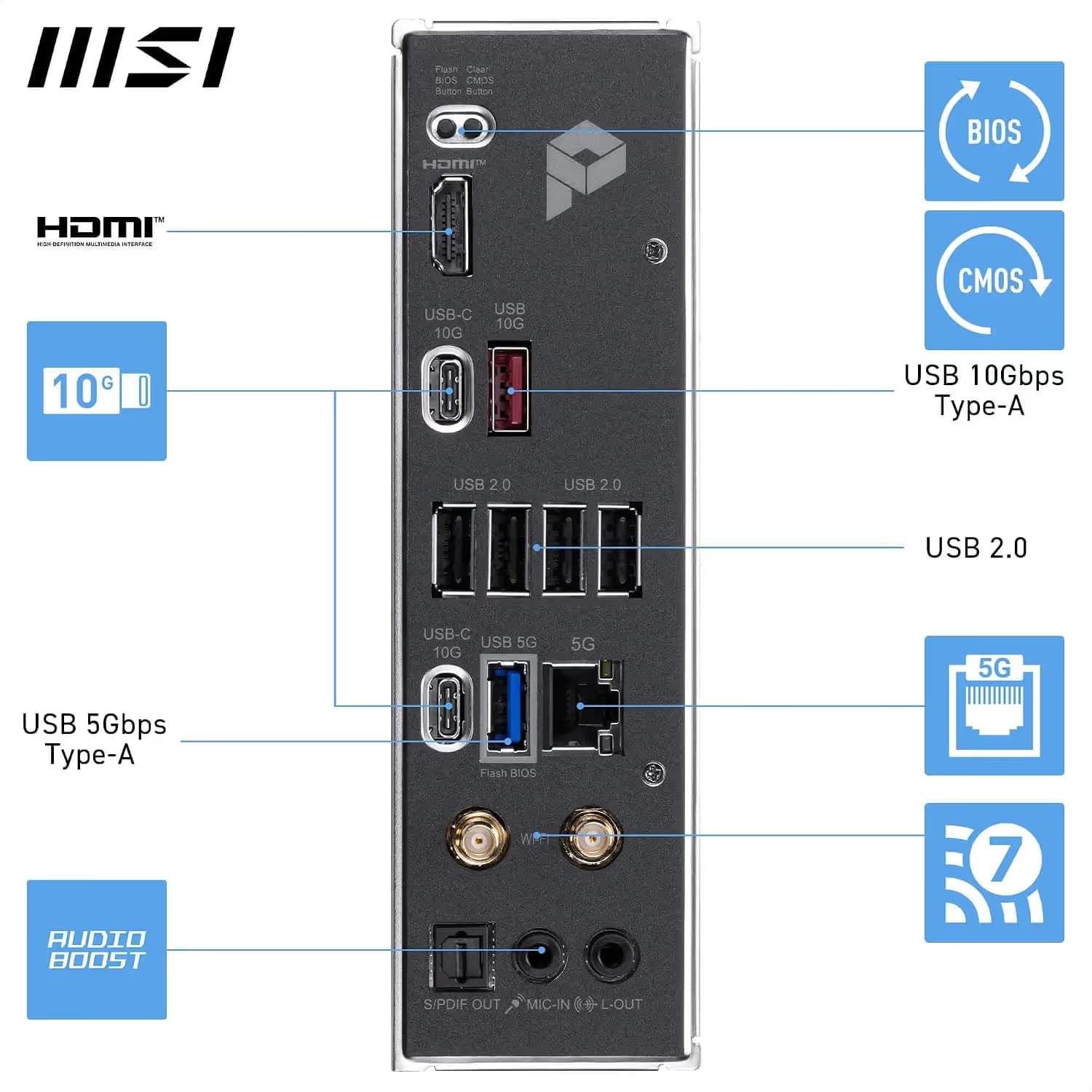

1x Clear CMOS button 1x Flash BIOS button 1x HDMI port 1x USB 10Gbps Type-A port 4x USB 2.0 ports 1x 5Gbps LAN (RJ45) jack 1x USB 5Gbps Type-A port 2x USB 10Gbps Type-C ports 2x Wi-Fi Antenna connectors 2x audio jacks 1x Optical S/PDIF Out connector

Product Information

Manufacturer

MSI

Series

PRO

Variant

B850-V EVO WIFI

Release Year

2026

Manufacturer Color

Black

UPC

824142455326

EAN

0824142455326

Part Numbers

PRO B850-V EVO WIFI

BuildCores ID

zvja6kw90

See an issue?Report an issue on OpenDB

Motherboard

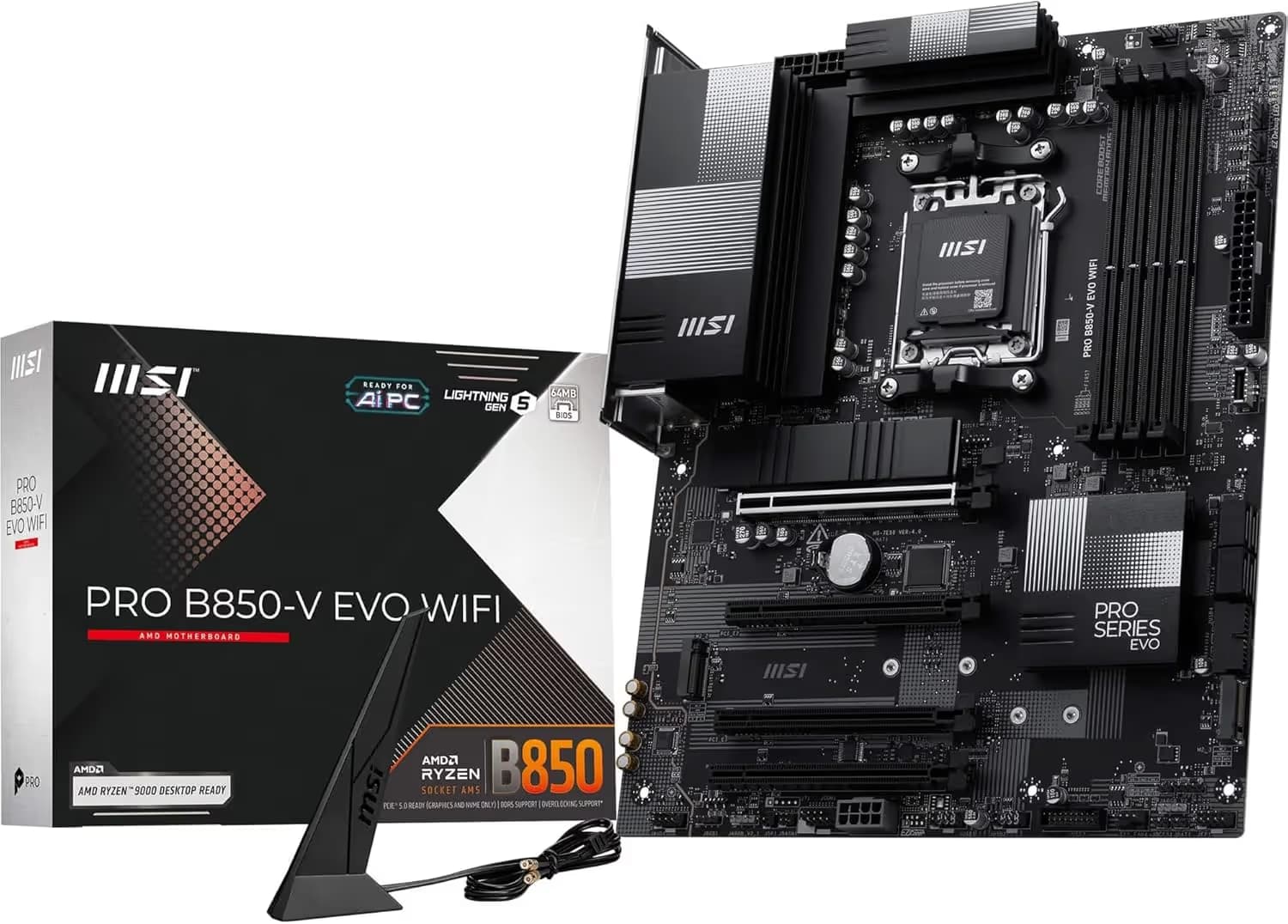

MSI PRO B850-V EVO WIFI

Name: MSI PRO B850-V EVO WIFI
Brand: MSI
SKU: zvja6kw90

SocketAM5

Form FactorATX

ChipsetAMD B850

Best Price

$148.79

via

	—	$148.79
Loading... Loading
	—	$148.79
Loading... Loading
	FREE s/h	$152.00
Loading... Loading
	FREE s/h	$163.99
Loading... Loading
	FREE s/h	$169.99
Loading... Loading
	FREE s/h	$169.99
Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$148.79 via Amazon Loading... Loading
	—	—	In stock	$148.79 via Walmart Loading... Loading
	FREE s/h	—	In stock	$152.00 via B&H Photo Loading... Loading
	FREE s/h	—	In stock	$163.99 via Best Buy Loading... Loading
	FREE s/h	—	In stock	$169.99 via Newegg Loading... Loading
	FREE s/h	—	In stock	$169.99 via MSI Loading... Loading

MERCHANT	SHIPPING	PROMO	AVAILABILITY	TOTAL
	—	—	In stock	$148.79 via Amazon Loading... Loading
	—	—	In stock	$148.79 via Walmart Loading... Loading
	FREE s/h	—	In stock	$152.00 via B&H Photo Loading... Loading
	FREE s/h	—	In stock	$163.99 via Best Buy Loading... Loading
	FREE s/h	—	In stock	$169.99 via Newegg Loading... Loading
	FREE s/h	—	In stock	$169.99 via MSI Loading... Loading

* BuildCores may receive compensation for affiliate sales through these links

Price History

Loading price history...

* Amazon pricing is not included in price history graphs.

General Specifications

Socket

AM5

Form Factor

ATX

Chipset

AMD B850

Max Memory

256 GB

Memory Type

DDR5

Memory Slots

Colors

BLACK

Lighting

None

PCIe Slots

1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 2 x PCIe 3.0 x1

M.2 Slots

M 2260/ 2280 PCIe 5.0 x4 M 2280/ 22110 PCIe 4.0 x4 M 2260/ 2280 PCIe 3.0 x4

SATA 6Gb/s

SATA 3Gb/s

Unknown

U.2 Ports

Unknown

Onboard Ethernet

None

WiFi

Wi-Fi 7 Bluetooth 5.4

USB 2.0

USB 3.2 Gen 1

USB 3.2 Gen 2

USB 3.2 Gen 2x2

USB 4.0

Unknown

USB 4 80Gbps

Unknown

CPU Fan Headers

Case Fan Headers

Pump Headers

CPU Optional Fan Headers

Unknown

ARGB 5V Headers

RGB 12V Headers

Power Button Header

Yes

Reset Button Header

Yes

Power LED Header

Yes

HDD LED Header

Yes

Temperature Sensor Headers

Thunderbolt Headers

Unknown

COM Port Headers

Unknown

Main Power

24-pin

CPU Power

8-pin 4-pin

ECC Support

Yes

RAID Support

Yes

Back-Connect Connectors

BIOS Flashback

Yes

Clear CMOS Button

Yes

Audio Chipset

Realtek ALC897

Audio Channels

7.1

Back Panel Ports

Product Information

Manufacturer

MSI

Series

PRO

Variant

B850-V EVO WIFI

Release Year

2026

Manufacturer Color

Black

UPC

824142455326

EAN

0824142455326

Part Numbers

PRO B850-V EVO WIFI

BuildCores ID

zvja6kw90

See an issue?Report an issue on OpenDB
